IFI Instruments SMX100
RF Amplifier, 10 kHz - 1 GHz, 100W

Download Product Datasheet

Available Option Configurations

Config-01

• No Options Included
• MSRP: $28,000 | In Stock!    GET QUOTE

Product Overview

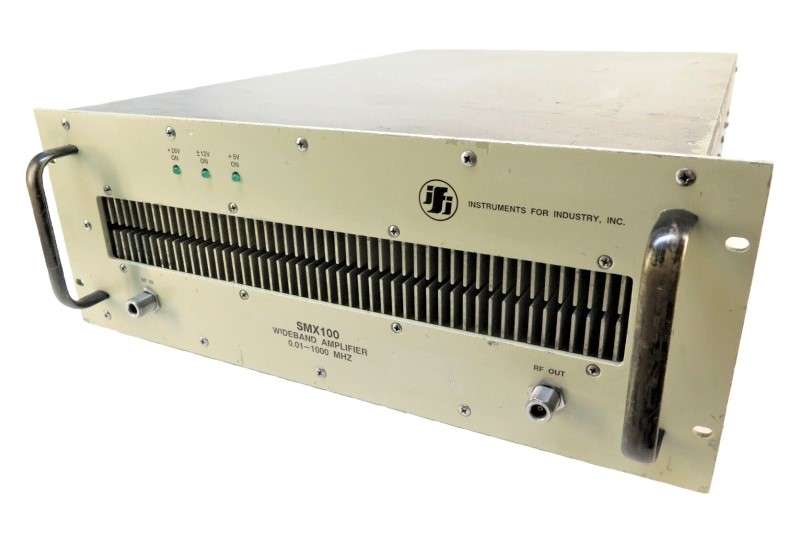

IFI INSTRUMENTS SMX100

The IFI (Instruments for Industry) SMX100 Amplifier provides outstanding RF performance, with a frequency range of 10 kHz to 1 GHz, and 100 watts of power.

The IFI SMX100 is conservatively designed to operate below maximum ratings for ruggedness and long term reliability. Sixth generation LDMOS Transistors provide reliable brute-power performance at frequencies up to 1000 MHz.

The SMX100 features individually shielded aluminum assemblies at the module level. This concept of a shielded modular design minimizes internally produced EMI signal leakage and provides easy access for field service and rapid turnaround at depot level repair facilities.

From the ground up, the IFI SMX100 is structurally engineered to withstand operation in mechanically hostile environments. Ruggedized versions are available for applications that will be exposed to very harsh environments.

Standard features of the IFI SMX100 include:

• VSWR Reflected Power Protection, the unit operates without damage or oscillation into any magnitude of phase or load impedance, Open and Short Circuit Protection.
• GPIB IEEE 488 and RS232 Remote Control
• RF Sample Port on the Front Panel, 112R for rear panel
• Internal Pre-amplification to obtain rated output power with an input level of 0 dBm or less.
• Gain Control Local and Remote, 30 dB range
• RF Input/Output Connectors on the Front Panel, 118R for rear panel
• Internal Systems Diagnostics and Status Indicators
• Total/Operate Elapsed Time Metering in hours
• RF Safety Interlock
• Forward/Reflected Power Indication simultaneously on Front Panel display

Specifications of the IFI SMX100 include:

• Frequency Range: 10 kHz - 1 GHz
• Output Power: 100W
• Input/output Impedance: 50 ohms
• RF Input/ Sample Connectors: Type N Female standard
• RF Output Connector: Type N Female standard
• Input VSWR: 2.0:1
• Output VSWR: 2.5:1
• Operating Temp: 0º to 50º C
• Non-operating Temp: -40º to 70º C (50,000 feet max)
• Humidity: 95% without condensation
• Altitude: 10,000 feet
• Cooling System: Air cooled, self contained
• Modulation: AM, FM, Pulse
• Configuration: Rack Mount as specified in Model Table, or Rack/Cabinet Integrated
• Spurious Outputs:
• Harmonics: -20 dBc minimum @ Linear Power
