EA Elektro-Automatik BCTS 10300
Battery Cycler and Test System
Power Supplies >> Battery Test Systems >> Battery Cycler and Test System
Model: BCTS 10300
|
Download Product Datasheet
Available Option Configurations
Config-01
- 1500-1000 - Up to 1,500V and 1,000A
- 4U-24U - 24U Test Rack, up to 90kW PSB/PUB Series
- Available for Rental GET QUOTE
Config-01
Product Overview
RENT ELEKTRO-AUTOMATIK BCTS 10300 Battery Cycler & Test System (Call for Availability)

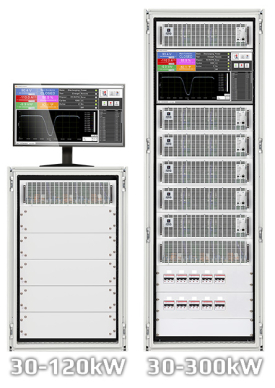

The EA-BCTS 10300 provides a complete solution for battery cycling and testing. Tests include drive cycle simulations and insulation resistance in addition to battery cycling. The system can control an environmental chamber and interface to the battery management system through the CAN bus interface. The drag-and-drop system software enables quick and easy test setup and execution. EA bidirectional power supplies comprise the core of the EA-BCTS 10300 Battery Cycler and Test System. These instruments operate in two quadrants to combine a power supply and an electronic load. With power capacities from 5 kW to 60 kW in a single instrument, the bidirectional power supplies can assemble into systems as large as 3.84 MW.
The Power Control and Measurement Module (PCMM) on the EA-BCTS 10300 monitors the battery pack and executes additional tests. EA-BCTS battery test software controls all battery cycling and battery test operations and the software uses a Widget-based approach to allow a user-configurable display. Set up and test execution is simple and fast and allows complete tests on a battery or another power source, such as a fuel cell. Along with active power factor correction and a high frequency switching power supply topology which yields over 90% sourcing efficiency, the EA-BCTS 10300 returns absorbed power to the AC power grid with up to 96.5% efficiency. This allows the supply to run at a lower temperature, reducing cooling infrastructure requirements and enhancing reliability.
Specifications for the ELEKTRO-AUTOMATIK BCTS 10300 Battery Cycler & Test System Include:
| Voltage Range | 0 - 1500 VDC (0-2000 V optional) |
| Current Range (single cabinet) | ± 2400 A |
| Max Power Range (single rack) | 300 kW |
| Regeneration To The Grid | 96.5 % |
See Datasheet for full specifications
