Test Equity 115A
Temperature Chamber, -73C to +175C, 1.55 Cu Ft

Download Product Datasheet

Available Option Configurations

Config-03

• F - Floor Standing version
• F4T - Watlow F4T Touchscreen Controller w/ethernet
• MSRP: $15,795 | Available for Rental    GET QUOTE

Config-02

• F - Floor Standing version
• F4T (NO LAN) - Watlow F4T Touchscreen Controller w/out LAN
• MSRP: $16,995 | Available for Rental    GET QUOTE

Product Overview

RENT TEST EQUITY 115A Temperature Chamber (Call for Availability)

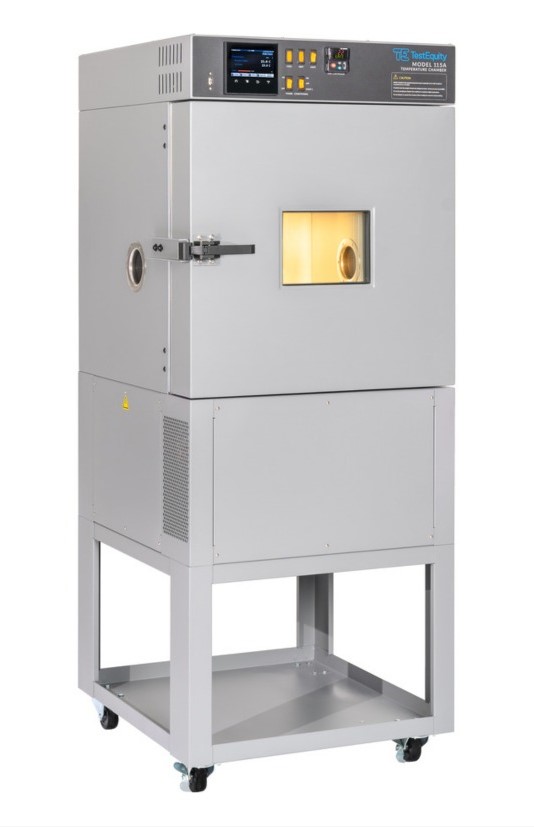

TestEquity Model 115A Temperature Chamber provides full-range temperature testing in a compact floor standing or benchtop package. Its rugged design includes a variety of standard features, making it an exceptional value. The High/Low Temperature Limit Controller and Alarm provides independent protection against excess temperatures. Both high and low limits can be set. The limit controller will shut down the chamber and trigger the audible alarm in the event of an out of limit condition.

The Test Equity 115A chambers include two 3" ports (2.83" inside diameter). Lets you attach wires and sensors to your test sample through both the left and right side of the chamber. A stainless steel wire shelf ensures proper airflow around your test sample for uniform temperature distribution. You won't need to rearrange you whole bench or workflow to accommodate the Model 115A. The chamber door is reversible, allowing the door to open from the left or right side. This is also useful when placing two chambers side-by-side. The chamber draws 15 Amps maximum at 120 Volts. You can plug it into any standard 20 Amp wall receptacle.

Specifications for the TEST EQUITY 115A Temperature Chamber Include:

See Datasheet for full specifications
