Rent or Buy 3Z Telecom RFV-2000 RF Vision Antenna Alignment Tool

Tektronix Encore

3Z Telecom RFV-2000
RF Vision Antenna Alignment Tool

Telecommunication and Wireless >> Antenna Alignment Tools >> RF Vision Antenna Alignment Tool
Rent Used Test Equipment
Manufacturer: 3Z Telecom
Model: RFV-2000

CLICK TO ENLARGE 3Z Telecom RFV-2000 RF Vision Antenna Alignment Tool

Electronic Test and Measurement Equipment

3Z Telecom RFV-2000 RF Vision Antenna Alignment Tool Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations


  • 3Z-RFV-CAML - Camera License Key
  • MSRP: $7,995 | Available for Rental    GET QUOTE

Product Overview


 The new 3Z Telecom RF Vision Antenna Alignment Tool is used for both panel and microwave antenna systems. It accurately measures antenna Azimuth, Tilt, Roll and Height. The 3Z RF Vision replaces the older 3Z RF Aligner and includes many new helpful features and benefits.

Improvements include:

  • Mechanically Aligned with HD Camera
  • 30% Smaller
  • Rugged Design & Weather Resistant
  • Protected with Rubber Bumper
  • Impact Resistant Display
  • Easier to Use
  • 5” Touch Screen LED Display
  • Embedded Augmented Reality
  • Rugged USB port
  • Connects to multiple constellations
  • Multiple frequency technology

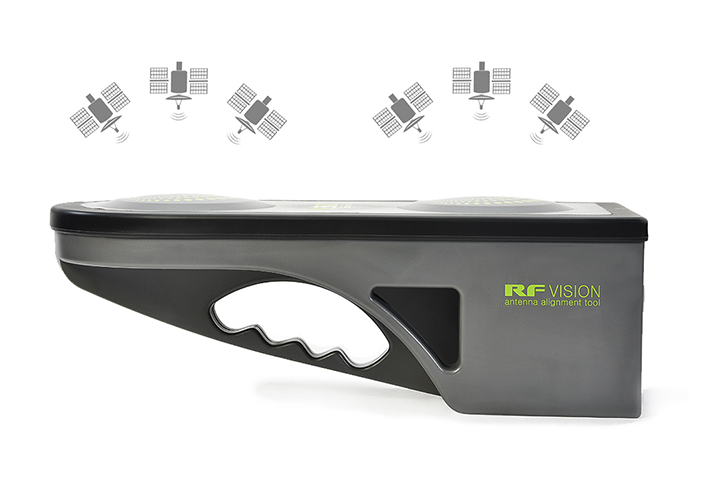

The 3Z RF Vision (model RFV-2000) connects to GPS, GLONASS, BEIDOU and GALILEO (muli-constellations!)

It also offers Dual Frequency Technology. Dual frequency technology allows RF Vision to measure each satellite twice seeing a total of 174 satellites signals, that is 3x more than the competitors. This delivers more accuracy, faster readings and works well in high dense urban cities and crowded towers.

The built-in HD Camera, not only aligns the antenna, but for the first time ever, also shows you where it is pointing. It provides a line of sight image that is mechanically aligned with the tool.

The world around your antennas are constantly changing, the 3Z RF Vision allows you to capture these changes. New building constructions, growing tree lines, etc. will degrade your coverage objectives and create unhappy customers and decreased revenues. Only the RF Vision will allow you to see these obstructions and give Engineers ability to optimize antenna orientations.

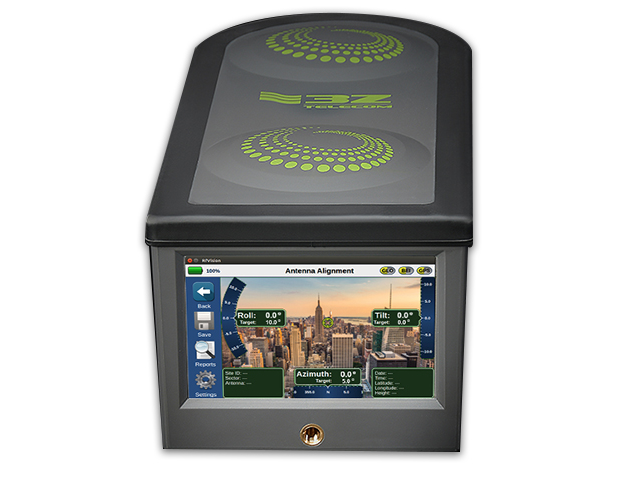

Augmented reality is embedded into the 5-inch LED touch screen display, allowing the tower tech to perfectly align the antenna by simply aligning the crosshair with the bullseye, which makes antenna alignment easier than ever before. The touch screen display is responsive to the most common gloves, that means you don’t need to remove them even in cold conditions.

The 3Z Telecom RF Vision includes a built-in Report Generator. There is no post processing required. The RF Vision will create a single comprehensive PDF as well as CSV reports for each site being aligned. These reports are easily retrieved over the micro-USB port. Included in the report are all target and measured alignment data, site sector identifiers, along with line of sight photo validation, geocoding, geolocation, date and time stamp.
