Agilent 11692D, Keysight 11692D, HP 11692D
Dual Directional Coupler, 2 - 18 GHz
RF and Microwave Components >> RF and Microwave Components >> Dual Directional Coupler, 2 - 18 GHz
Model: 11692D
|
Download Product Datasheet
Product Overview

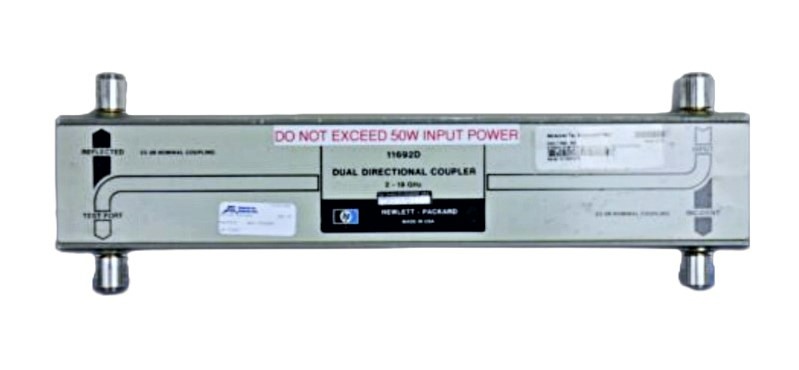

The Agilent 11692D is a dual-directional coupler for 2 to 18 GHz with a 20 dB coupling factor. With 30 dB directivity to 8 GHz and 26 dB to 18 GHz, it is useful for broadband reflectometry. It features many connector options to match test device requirements. The dual couplers make it possible to measure both reflection and transmission parameters of a device under test at one time.
Features and Specifications of the Agilent / HP11692D Coupler include:
- Ideal for reflectometer measurements
- Nominal Coupling: 20 dB
- Max. Coupling Variation: ±1 dB incident to test port
- Min. Directivity : 2 to 8 GHz: 30 dB, 8 to 18 GHz: 26 dB, 24 dB with type-N connector on the test port (11692D) or on the input port (11691D)
- SWR Primary Line Max (50 Ohm Nom.): 2 to 12.4 GHz: 1.3, 12.4 to 18 GHz: 1.4
