SKF TKSA51
Laser Shaft Alignment Tool

CLICK TO ENLARGE

Download Product Datasheet

Available Option Configurations

Config-01

• No Options Included
• MSRP: $7,232 | Available for Rental    GET QUOTE

Config-02

• PAD - iPad Mini
• MSRP: $7,532 | Available for Rental    GET QUOTE

Product Overview

RENT SKF TKAS51 ( TKAS 51 ) Shaft Alignment Tool

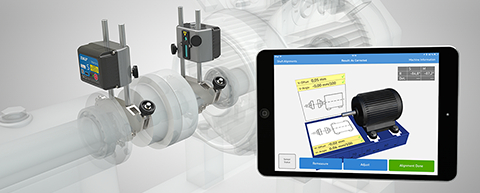

The SK TKSA 51 / TKSA51 Shaft Alignment Tool provides high measurement flexibility and performance suitable for entry level to expert alignment jobs. Designed to work with the shaft alignment for TKSA 51 app on a tablet or smart phone, this intuitive tool is easy to use and requires no special training. The included accessories enable use of the TKSA51 for a wide range of alignment applications, such as motors, drives, fans, pumps, gearboxes and more. The tool's mobile app includes tutorial videos to show operators how to perform accurate measurements.

Measurement flexibility - The well-known, three-position measurement gains additional flexibility as measurements can start at any angle and require a total minimal rotation of only 40 degrees. This enables operators to perform alignments on applications with limited space.

Automatic reports - Alignment reports are generated automatically and can be customised with notes, a machine picture and a signature via touchscreen. These reports can be exported as PDF files and shared with other mobile apps.

Comprehensive and compact - A range of included components, such as magnetic mounting brackets and extension rods and chains, increase the TKSA 51's versatility, yet it remains compact, lightweight and easy to carry.

3-D live view - This feature enables intuitive positioning of heads for quick alignment measurements and displays live when horizontal/vertical alignment correction is achieved. The app enables 3-D rotation of the virtual motor to correspond with the actual machine position.

Disturbance compensation - Measurement values are averaged over time to provide accuracy in presence of vibration or other external disturbances.
Fully functional demo mode - The app can be downloaded easily, and its demonstration mode allows the shaft alignment process to be experienced before purchasing the TKSA 51.

Of the TKSA family of products, the SKF TKSA51 shaft alignment tool is suitable for the broadest range of applications. Its compact, lightweight design, high measurement flexibility and included accessories enable use of the instrument on virtually any machine, even in difficult-to-reach locations. Protective cases can be used on tablets and smart phones and do not affect the functionality of the TKSA51.

The TKSA51 App is available for free in the Apple AppStore. Just search for “SKF TKSA 51” or follow the QR code on this page with your Apple device and try the alignment process with the fully functional demonstration mode.

Specifictions for the SKF TKAS51 Shaft Alignment Tool include:

• Sensors and communication 20 mm (0.8 in.) PSD with red line laser Class 2; electronic inclinometer ±0,1°; Bluetooth 4.0 LE
• System measuring distance 0.07 to 5 m (0.23 to 16.4 ft)
• Measuring errors / displayed resolution <1% + 1 digit
• Compatible operating devices * iPad Mini recommended, iPad 3rd generation or above, iPod Touch 5th generation or above iPhone 4S or above
• Operating system requirements Apple iOS 8 or above
• Software / App update via Apple App Store
• Shaft diameters 20 to 150 mm (0.8 to 5.9 in.),  up to 450 mm (17.7 in.) with extension chains supplied
• Max. recommended coupling height 170 mm (6.7 in.) with extension rods
• Alignment measurement 3 × positions free measurement (min. 40° total angle), automatic measurement
• Alignment correction Live values for vertical and horizontal machine position correction
• Adjustable shocks compatible (Vibracons)
• Soft foot correction Available with separate "Soft Foot for TKSA 51" app on Apple App Store
• Alignment report Automatic pdf report exportable via email/cloud services
• Display orientation Landscape (plus portrait on tablets)
• MU battery Up to 10 hours continuous operation (2 000 mAh rechargeable Li-ion battery)
• Carrying case dimensions 355 × 250 × 110 mm (14 × 9.8 × 4.3 in.)
• Total weight (incl. case) 2,9 kg (6.4 lbs)
• Operating temperature 0 to 45 °C (32 to 113 °F)
• IP rating IP 54

Click to see other SKF Laser Shaft Alignment Tools
