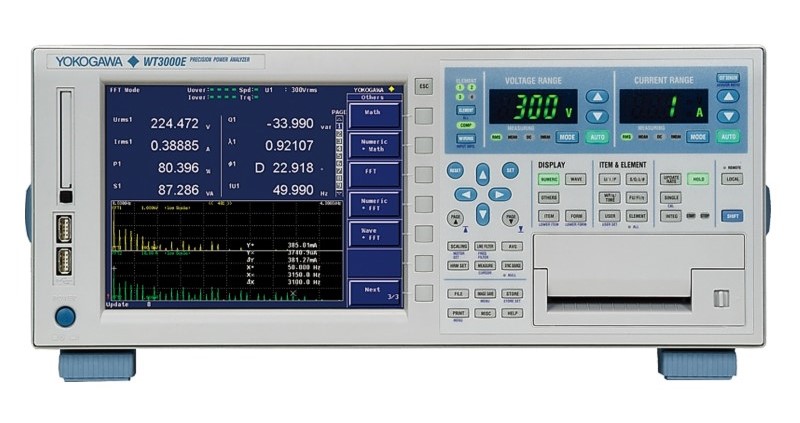

Yokogawa WT3000E
Precision Power Analyzer

Download Product Datasheet

Available Option Configurations

Config-01

• G6 - Advanced Calculation
• WT3004E - 4 Input Element Version of WT3000
• MSRP: $22,850
• Available for Rental    GET QUOTE

Config-03

• C7 - Ethernet Port
• G6 - Advanced Calculation
• WT3004E - 4 Input Element Version of WT3000
• MSRP: $23,860
• Available for Rental    GET QUOTE

Product Overview

RENT Yokogawa Power Analyzer WT3000E (call for availability)

Yokogawa’s power measurement technology provides best-in-class precision and stability. With basic power accuracy of ±0.02% reading, DC and 0.1 Hz-1 MHz measurement bandwidths, and up to four input elements, the Yokogawa WT3000E Precision Power Analyzer provides higher-accuracy measurement of I/O efficiency.

Features and Specification of the Yokogawa WT3000E Power Analyzer include:

• Basic accuracy: 0.01% of reading
• Basic power accuracy: 0.02% of reading
• Both 2A and 30A current input elements can be installed in the same unit (up to four elements max)
• Good readability: The large, 8.4-inch LCD and the range indicator LEDs
• Simultaneous measurement with 2 units (8 power input elements)
• Store function: 50 ms data storing interval
• Interface: GP-IB, Ethernet, RS-232 and USB
• Advanced computation function: Waveform computation, FFT analysis, waveform sampling data daving
• IEC61000-3-2 and IEC61000-3-12: Harmonic measurement (optional)
• IEC61000-3-3 and IEC61000-3-11: Voltage fluctuation / flicker measurement (optional)

Features and specifications of the Yokogawa WT3000E Power Analyzer include:

High accuracy and wide frequency range:

• Basic power accuracy: ±(0.01% of reading + 0.03% of range)
• Frequency range: DC, 0.1 Hz to 1 MHz

Low Power Factor Error:

• Power factor error when cos ø=0:
• 0.03% of S where S is reading value of apparent power
• ø is phase angle between voltage and current

Current Range:

• Direct Input:
• 0.5/1/2/5/10/20/30 [A] or 5/10/20/50/100/200/500 [mA], 1/2 [A] *
• 2A and 30A input elements can be installed together in a unit.

External Input:

• 50m/100m/200m/500m/1/2/5/10 [V]

Voltage Range and current range are for crest factor 3

• 1000 [Vrms] Continuous maximum common mode voltage (50/60 Hz)
• Data Update rate: 50 ms to 20 sec
• Effective input range: 1% to 130%
• Simultaneous measurement with 2 Units
