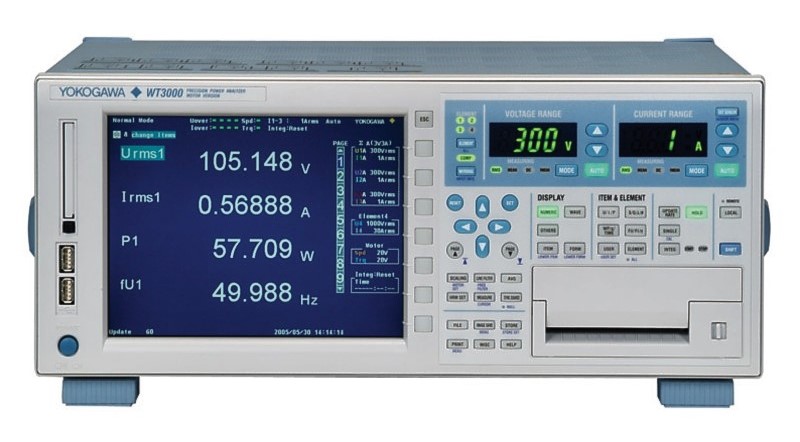

Yokogawa WT3000
Precision Power Analyzer

Download Product Datasheet

Available Option Configurations

Config-30

• C7 - Ethernet Port
• DT - Delta Calculation
• G6 - Advanced Calculation
• V1 - VGA Output
• 04 - 30 Amp Input Element for WT3000-760304
• B5 - Built-In Printer
• C5 - USB Peripheral Port for Storage & Keyboard
• FQ - Add-on Frequency Measurement
• WT3000-760304 - 4 Input Element Version of WT3000
• DA - 20 Channel Digital Output
• MV - Motor Version
• MSRP: $30,720
• Available for Rental    GET QUOTE

Config-29

• B5 - Built-In Printer
• CC - Cycle by Cycle Measurement
• FL - Voltage Fluctuation / Flicker Measurement
• MV - Motor Version
• 04 - 30 Amp Input Element for WT3000-760304
• C12 - USB Communications Port
• DA - 20 Channel Digital Output
• C2 - RS-232C Serial Interface
• G6 - Advanced Calculation
• WT3000-760304 - 4 Input Element Version of WT3000
• C5 - USB Peripheral Port for Storage & Keyboard
• C7 - Ethernet Port
• DT - Delta Calculation
• FQ - Add-on Frequency Measurement
• V1 - VGA Output
• MSRP: $35,310
• Available for Rental    GET QUOTE

Product Overview

RENT Yokogawa Power Analyzer WT3000 (call for availability)

Yokogawa’s power measurement technology provides best-in-class precision and stability. With basic power accuracy of ±0.02% reading, DC and 0.1 Hz-1 MHz measurement bandwidths, and up to four input elements, the Yokogawa WT3000 Precision Power Analyzer provides higher-accuracy measurement of I/O efficiency.

Features and Specification of the Yokogawa WT3000 Power Analyzer include:

• Basic accuracy: 0.01% of reading
• Basic power accuracy: 0.02% of reading
• 2A current input element
• Good readability: The large, 8.4-inch LCD and the range indicator LEDs
• Simultaneous measurement with 2 units (8 power input elements) - Store function: 50 ms data storing interval
• Interface: GP-IB, Ethernet, RS-232 and USB
• Advanced computation function: Waveform computation, FFT analysis, waveform sampling data daving
• IEC61000-3-2 and IEC61000-3-12: Harmonic measurement (optional)
• IEC61000-3-3 and IEC61000-3-11: Voltage fluctuation / flicker measurement (optional)
