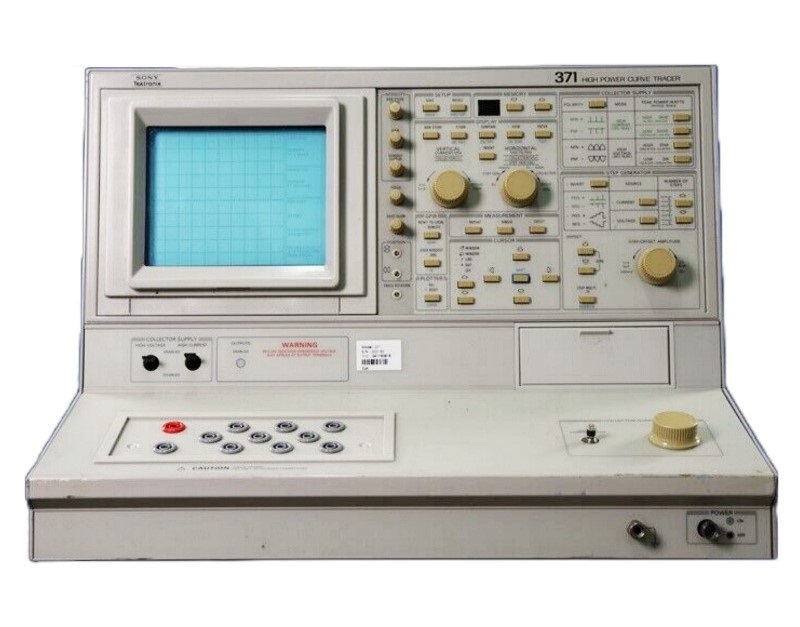

Tektronix 371 High Power Curve Tracer

Electronic Test and Measurement Equipment

Tektronix 371 High Power Curve Tracer Product Datasheet Download Product Datasheet

Rent Test Equipment

Product Overview

RENT TEKTRONIX 371 Curve Tracer (call for availability)

The Tektronix 371 Curve Tracer is a high resolution high power curve tracer and is used in a wide variety of applications. The Tek 371 Curve Tracer performs DC parametric characterization of thyristors, SCRs and power MOSFETs. The high voltage collector mode permits testing the Off-characteristics of a device up to 3,000 volts. The pulsed high current collector mode provides output current pulses greater than 400 amps peak for testing On-characteristics. It also permits high power testing up to 3,000 watts. In the R&D lab, the Tektronix 371 Curve Trace is used for characterization of new designs, extraction of SPICE parameters, failure analysis and data sheet generation. In manufacturing test, it is used to verify device quality and process monitoring. The Tektronix 371 Curve Tracer is used for incoming inspection to verify device performance, perform failure analysis and to match components.

Features and Specifications of the Tektronix 371 Curve Tracer include:

  • Applications
    • Manual or Automated High Resolution DC
    • Parametric Characterization of Semiconductors
    • Incoming Inspection
    • Manufacturing Test
    • Process Monitoring and Quality Control
    • Data Sheet Generation
    • Component Matching
    • Failure Analysis
    • Engineering
  • High­ Power Measurements of Semiconductor Devices
    • Up to 3,000 Volts
    • Up to 400 Amps
    • Up to 3,000 Watts
  • Waveform Comparison
  • Envelope Display
  • Waveform Averaging
  • 3.5 inch MS DOS ­Compatible Disk Storage
  • Fully Programmable
    • Interactive Programmable Control: from the full featured front panel or over the GPIB
    • operating parameters can be adjusted and stored
    • operating parameters can be recalled:
      • via 371 nonvolatile memory
      • via an external controller
  • 3 Cursor Measurement Modes
    • Dot Cursor: provides direct screen readout of voltage, current, gm or DC beta at any point
    • Window Cursor:
      • can be positioned between two curves to measure small signal beta or gm
      • can be used for visual go/no-go tests
    • Function Line Cursor: provides screen readout of a slope or intercept value
  • Sweep Measurement Mode
    • provides for automatic construction of a family of curves while stimulating the device with low duty-cycle pulses
    • provides power curves to be displayed without excessive heating of the device
  • Test Fixture:
    • standard accessory
    • provides safe device enclosure to ensure operator protection during measurements
    • Kelvin Sense Measurements
    • adapter accommodation:
      • A1001-A1005 adapters available with Kelvin sensing
      • 3-Pin adapters without Kelvin sensing
      • A1023 and A1024 surface mount adapters
