A.H. Systems AK-18G
Antenna Kit, 20 Hz to 18 GHz
Compliance Testing - EMC, ESD, EMI, RFI >> Antennas >> Antenna Kit, 20 Hz to 18 GHz
Model: AK-18G
|
Download Product Datasheet
Product Overview

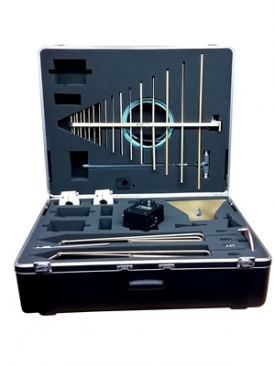

A.H. Systems AK-18G Antenna Kit
The A.H. Systems AK-18G Antenna Kit kit provides all the reliable antennas, current probes, and accessories needed to satisfy a wide array of customer requirements. Each component has a specific storage compartment in the carrying case therefore, loss and breakage are virtually eliminated. Cables, a tripod with azimuth and elevation head, and a tripod carrying case accompany each antenna kit. Everything you need for any of your compliance testing.
Features and specifications of the AK-18G include:
- 20 Hz to 18 GHz
- Individually Calibrated
- FCC, MIL-STD, VDE and TEMPEST Testing
- Rugged Construction
The following items are included in teh AK-18G kit:
- TSC-542 Transit Storage Case
- SAS-510-2 290 MHz - 2000 MHz Log Periodic Antenna
- SAS-542 20 MHz - 330 MHz Biconical Antenna
- SAS-550-1B 9 KHz - 60 MHz Active Monopole
- SAS-560 20 Hz - 2 MHz Passive Loop Antenna
- SAS-571 700 Hz - 18 GHz DRG Horn Antenna
- BCP-610 20 Hz - 20 MHz Broadband Current Probe
- (or BCP-510 20 Hz - 1 MHz Broadband Current Probe)
- BCP-611 10 KHz - 150 MHz Broadband Current Probe
- (or BCP-511 HF/VHF Current Probe, 100 kHz - 100 MHz)
- SAC-18G-3 up to 18 GHz 3 Meter Low-Loss Cable
- ADP-202 up to 18 GHz N(f) to BNC(m) Adapter
- ATU-510 Wooden Tripod
- AEH-510 Azimuth and Elevation Head
- TCC-510 Tripod Carrying Case
