Rent or Buy Holzworth HA7062D Real Time Phase Noise Analyzer, 10 MHz - 26.6 GHz (optionally 40 GHz)



Tektronix Encore




Holzworth HA7062D
Real Time Phase Noise Analyzer, 10 MHz - 26.6 GHz (optionally 40 GHz)

Analyzers >> Phase Noise and Noise Figure Analyzers >> Real Time Phase Noise Analyzer, 10 MHz - 26.6 GHz (optionally 40 GHz)
Rent Used Test Equipment
Manufacturer: Holzworth
Model: HA7062D

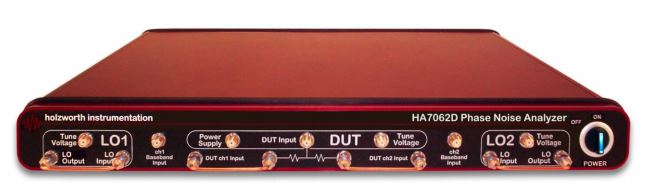

CLICK TO ENLARGE Holzworth HA7062D Real Time Phase Noise Analyzer, 10 MHz - 26.6 GHz (optionally 40 GHz)

Electronic Test and Measurement Equipment

Holzworth HA7062D Real Time Phase Noise Analyzer, 10 MHz - 26.6 GHz (optionally 40 GHz) Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations

Config-01

  • No Options Included
  • MSRP: $49,500 | Available for Rental    GET QUOTE

Product Overview

RENT HOLZWORTH HA7062D Real Time Phase Noise Analyzer (Call for Availability)



The HA7062D Real Time Phase Noise Analyzer is born from Holzworth’s history of industry leading phase noise analyzers with proven accuracy, high reliability, automation and flexibility. The real time engine covers the full measurement bandwidth with extremely fast measurement speeds to reduce product development time and optimizes ATE manufacturing throughput. Holzworth is the only company that has architected the instrument’s front end so that the noise floors limits can actually be measured.  A key component of the analog front end is a pair of Holzworth HSX Series RF Synthesizers as the test system’s internal LOs. These ultra low noise RF sources not only complement the dual core FFT engine to provide one of the most advanced phase noise analyzers available, but they are also made available to the user at the front panel’s LO Output ports.

Holzworth’s HA7062D has a fully shielded, fan-less 1U chassis eliminates ground loops and troublesome microphonics for uncompromised performance and repeatability. The unique architecture of the HA7062D allows for direct access to key internal modules in order to measure the actual noise floor of the analyzer at any given frequency vs. minimum frequency offset and number of correlations. The HA7062D allows for a high level of measurement flexibility to accommodate different test scenarios by allowing the user access to various system input points. However, only the DUT Input port is necessary for making straight forward absolute phase noise measurements of a frequency source. The highly reliable hardware is capable of additional functionality for custom requirements.



Specifications for the HOLZWORTH HA7062D Real Time Phase Noise Analyzer Include:

Frequency Range 10 MHz to 26 GHz (40GHz optional)
Measurement Offset .0.1Hz to 100MHz
Noise Floor < -190 dBc/Hz at 10kHz OS



See Datasheet for full specifications
