Product Overview

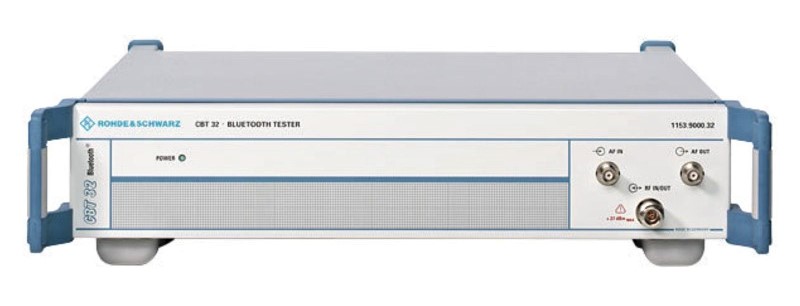

Rohde & Schwarz CBT32 Bluetooth Tester

The R&S CBT32 performs Bluetooth RF tests at very fast speed. In addition to power, modulation, frequency and BER tests, the Rohde & Schwarz CBT32 performs a variety of spectrum measurements on an active Bluetooth^® connection without requiring any extra spectrum analyzer test equipment. While conventional Bluetooth^® test equipment sequentially measure power, modulation, frequency accuracy, and frequency drift, the R&S CBT32 performs all these tests in a single cycle, which makes the CBT32 extremely quick in manufacturing evironments. For use in the laboratory, the R&S CBT32 offers traces for power, modulation and spectrum, which are output in real-time. An external display is required

Features of the R&S CBT32 include:

Power:

• Nominal power, peak power, leakage power
• Power control
• EDR: relative Power

Timing:

• Packet timing error
• EDR: guard time

Spectrum:

• 20 dB band-width, adjacent channel power (ACP), frequency range
• EDR: in-band spurious emissions (gated ACP)

Modulation:

• Average, maximum and minimum frequency deviation
• EDR: RMS DEVM, Peak DEVM, 99% DEVM
• EDR: differential phase encoding
• EDR: I/Q constellation diagram
• EDR: phase difference characteristic

Frequency:

• Frequency accuracy (ICFT), frequency drift, maximum drift rate
• EDR: carrier frequency stability ω_i and ω₀
