RENT BK PRECISION MR50040 High Voltage DC Power Supply (Call for Availability)
The BK Precision MR50040 Series of high voltage multi-range DC power supplies produce 500V at up to 5kW of clean output power in a compact 2U form factor. For benchtop applications, the MR50040 offers an intuitive user interface for list mode programming and slew rate adjustments directly from the front panel. Operating software is provided for test sequence generation and data logging without the need to write source code. In addition, this series supports USB, GPIB, LXI compliant LAN, and analog interfaces for remote control and programming.

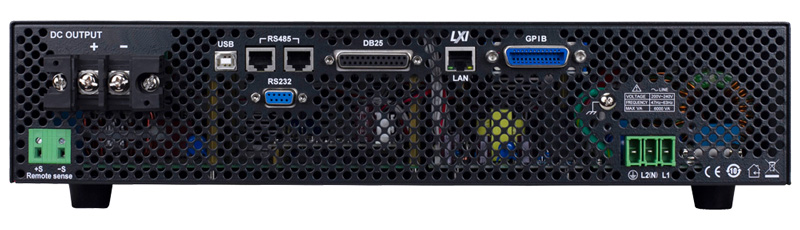

Combined with the optional SAS application software, users of the BK Precision MR50040 can easily simulate the I-V curve of different arrays under various irradiance conditions while measuring and validating the effectiveness of the inverter’s MPPT algorithm. The galvanically isolated analog interface can be used to monitor voltage, current, regulation mode (CV or CC), or to indicate fault conditions. In addition to front panel and PC interface control, the BK Precision MR50040 can be controlled from zero to full scale by an external voltage signal or resistor (0 to 5 V / 5 kΩ or 0 to 10 V / 10 kΩ selectable). The power supply can be configured for Socket or Telnet connections through the LAN (Ethernet) and controlled using SCPI commands.
Specifications for the BK PRECISION MR50040 High Voltage DC Power Supply Include:
Output Voltage | 0 - 500V |
Output Current | 0 - 40A |
Output Power | 5000W |
Programming Resolution | 20mV / 2mA |
See Datasheet for full specifications
