Chroma 61512
Programmable AC Source, 0-300V, 15-1.5kHz, 18kVA, 1 or 3 Phase

Power Supplies >> AC Power Sources, More than 10kVA >> Programmable AC Source, 0-300V, 15-1.5kHz, 18kVA, 1 or 3 Phase
Rent Used Test Equipment
Manufacturer: Chroma
Model: 61512

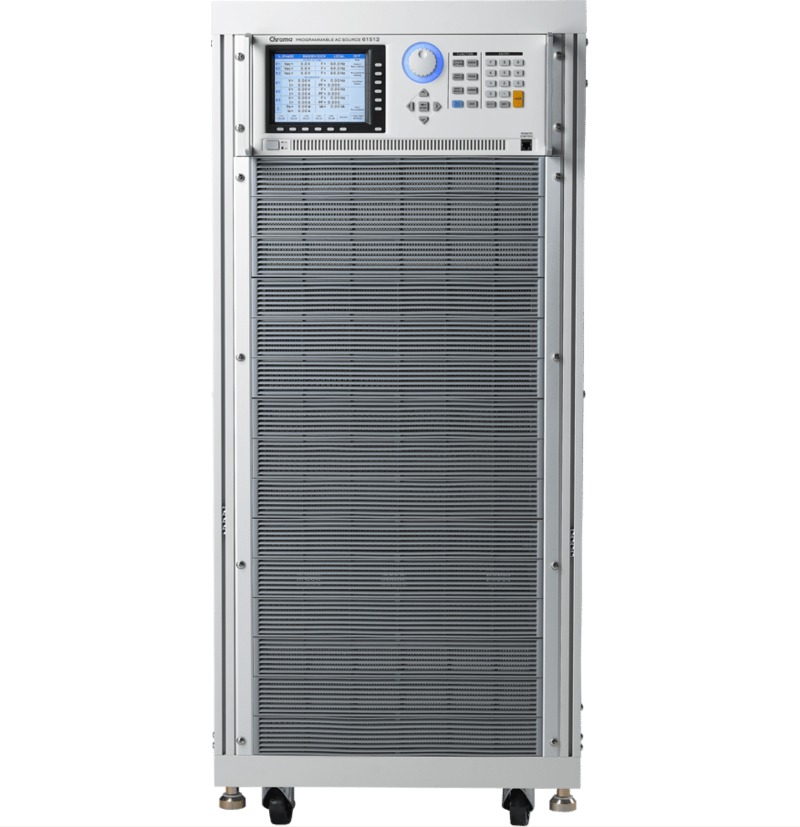

Chroma 61512 Programmable AC Source, 0-300V, 15-1.5kHz, 18kVA, 1 or 3 Phase

Electronic Test and Measurement Equipment

Chroma 61512 Programmable AC Source, 0-300V, 15-1.5kHz, 18kVA, 1 or 3 Phase Product Datasheet Download Product Datasheet

Rent Test Equipment

Available Option Configurations

Config-01

  • 220 - 220VAC Input
  • MSRP: $0 | In Stock!    GET QUOTE

Product Overview

The Chroma 61512 Programmable AC Source provides the ability to simulate various AC line input conditions and measurement of critical characteristics for products under test. These features make the Chroma 61512 Programmable AC Source ideal for commercial, power electronics, avionics, military and regulation test applications from bench-top R/D design verification, quality assurance to mass production.

Using the state of the art PWM technology, the Chroma 61512 Programmable AC Source can deliver the maximum output voltage up to 300Vac and output frequency from 15Hz to 1500Hz. The AC+DC modes extend the applications not only for providing pure AC voltage, but also DC component for DC offset testing in laboratory. The Chroma 61512 Programmable AC Source is capable of delivering up to 4 times of peak current compared to its maximum rated current that makes it ideal for inrush current test. It possesses the ability to generate pure sine waveform output with typical distortion less than 0.3% at 50/60Hz..

The Chroma 61512 Programmable AC Source is able to provide precision measurements such as RMS voltage, RMS current, true power, power factor, current crest factor and so on. By applying the advanced DSP technology, the Chroma 61512 Programmable AC Source can easily simulate power line disturbance (PLD) by LIST, PULSE and STEP modes.

The Chroma 61512 Programmable AC Source allows users to compose different harmonic components to synthesize various harmonic distorted waveforms. By applying this advanced feature, users can program a sweeping frequency component incorporated with fundamental voltage for finding resonance points of the DUT, thus provide the user with in depth analysis result.

To simulate the natural waveform, the Chroma 61512 Programmable AC Source provides an external analog input to amplify the analog signal generated from arbitrary signal generator. Thus, user can implement this feature to duplicate the unique waveform observed in the field.

The user-friendly interface allows the user quick access to the Chroma 61512 Programmable AC Source’s functions through large graphic LCD display front panel with clear indicated keypad. The GPIB (IEEE488.2), RS-232, USB and Ethernet interface are available for users to control the AC source remotely.

Features and Specifications of the Chroma 61512 Programmable AC Source include:

  • Power Rating:  18KVA
  • Voltage Range:  0-150V/O-300V/Auto
  • Frequency:  DC, 15Hz-1500Hz
  • Single-phase or three-phase output selectable
  • Programmable slew rate setting for changing voltage and frequency
  • Programmable voltage and current limit
  • High output current crest factor ideal for inrush current testing
  • Turn on, turn off phase angle control
  • TTL signal which indicates output transient
  • LIST, PULSE, STEP Mode Functions for testing power line disturbance (PLD) simulation
  • Voltage dips, short interruption and voltage variation simulation
  • Harmonics, inter-harmonics waver form synthesizer
  • Comprehensive measurement capability including current harmonics
  • Analog programmable interfaces
  • Remote interface: GPIB, RS-232, USB and Ethernet
  • Capable of delivering power output up to 90kVA by implementing master-slave parallel operation. (use the Chroma A615104 to parallel two units together)
