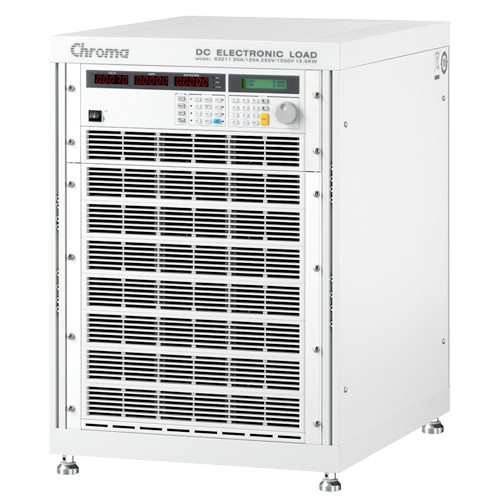

Chroma 63212
DC Electronic Load, 10kW, 150A, 1000V

Download Product Datasheet

Product Overview

RENT CHROMA 63212 Programmable DC Electronic Load (Call for availability)

    Chroma's 63212 programmable DC electronic loads are designed for a wide variety of dc power conversion products. The high power rating, parallel and synchronization capabilities, and the ability to provide up to 2.7 times of rated power for short duty cycle loading make the Chroma 63212 especially well-suited for high power applications such as switch-mode rectifiers and for discharging batteries packs and fuel cells. The Chroma 63212 DC loads offer outstanding high speed, programmable dynamic load simulation and control capabilities.

    The Chroma 63212 electronic loads have a built-in 15-bit precision A/D converter that can achieve 0.05%+0.05% F.S., 0.1%+0.1% F.S. and 0.3%+0.3% F.S. accuracy for voltage, current, and power measurements respectively. It  provides constant current, constant resistance, constant voltage and constant power modes and also provides necessary measurement functions and short circuit simulations.  The self diagnosis routines, built-in protection against OC, OP, OT, and an alarm indicating OV reverse polarity to ensure safe operation and reliability.

Specifications for the Chroma 63212 High Power DC Electronic load include:

See Datasheet for full specifications

Other models is this series are 63201, 63202, 63203, 63204, 63205, 63206, 63207, 63208, 63209, 63210, 63211.
