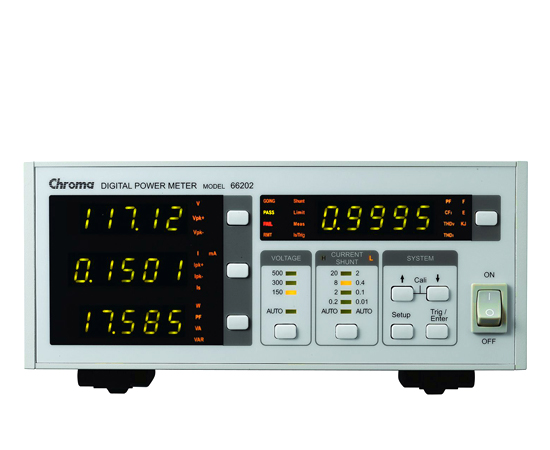

Chroma 66202
Digital Power Meter

CLICK TO ENLARGE

Download Product Datasheet

Product Overview

RENT Chroma 66202 (call for availability)

The Chroma 66202 Digital Power Meter is designed for single-phase measurements of AC power signals and related parameters common to most electronic products. Instead of traditional analog measurement circuits the Chroma 66202 Digital Power Meter uses state-of-the-art DSP digitizing technology. The internal 16 bits analog/digital converters with sampling rates of up to 200 kHz provide both high speed and high accuracy measurements.

The 66202 Digital Power Meter includes a 2-shunt design to provide highly accurate readings for both low and high current measurements. In addition to the parameters measured by Model 66201, the 66202 includes Inrush current, Total Harmonic Distortion of V/I, and Energy measurements. With these practical functions, The Model 66202 is suitable for the most demanding of R&D and quality control departments.

Features and specifications of the Chroma 66202 include:

• Voltage Range : 150/300/500 Vrms
• Current Range : Model 66201 - 0.01/0.1/0.4/2 Arms Model 66202 - 0.01/0.1/0.4/2 Arms 0.2/2/8/20 Arms
• Frequency Range : DC, 15Hz~10kHz
• Embedded high speed DSP, 16 bits Analog/ Digital converters
• 10 mA minimum current range & 1mW power resolution
• Meets ENERGY STAR / IEC 62301 measurement requirements
• Accumulated energy methods for unstable power measurement
• User-define criteria provides automatic PASS/FAIL indications
• Half rack width and 2U height, suitable for system integration
• Dual current shunt design provides high accuracy over a wide current range (Model 66202)
• THD and user-specify order distortion measurement
• Inrush current and energy measurement
• Interface options : USB or USB+GPIB
• Voltage/ Current harmonics measurement up to 50 orders (requires 7604 SoftPanel - available separately)
