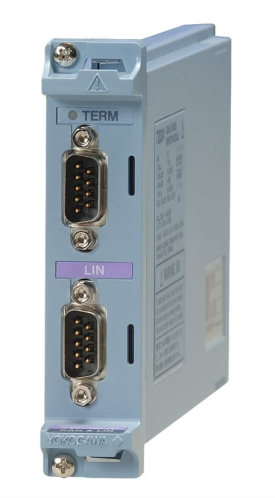

Yokogawa 720241
CAN/LIN Bus Monitor Module
Data Acquisition and Recorders >> Accessories and Other >> CAN/LIN Bus Monitor Module
Model: 720241
|
Download Product Datasheet
Available Option Configurations
Config-01
- No Options Included
MSRP: $3,030 |
In Stock! GET QUOTE
Config-01
Product Overview
RENT Yokogawa 720241 CAN/LIN Bus Monitor Module (Call for Availability)
The Yokogawa 720241 CAN/LIN Bus Monitor Module is used for monitoring and analyzing the data transmitted on a CAN or LIN bus. This module is used to decode the CAN or LIN-Bus signals and display information on physical data like engine temperature, vehicle speed and brake-pedal position as analog waveforms and compare this with the data coming from real sensors.
The Yokogawa 720241 CAN/LIN Bus Monitor Module is equipped with one CAN and one LIN input port, enabling a single module to be connected to a CAN and a LIN protocol network. This module interprets vehicle installed communication protocols, monitor the communication data, and display the time series trend waveforms. By combining Yokogawa 720241 CAN/LIN Bus Monitor Module module with other input modules, it can simultaneously measure the communication data in a vehicle, the voltage and temperature, the sensor signals and other changes in analog data over time, as well as ECU (Electronic Control Unit) control logic signals.
Specifications for Yokogawa 720241 CAN/LIN Bus Monitor Module Include:
| Maximum Sample Rate | 100 kS/s |
| Maximum Measurement Voltage | 10V (CAN port), 18V (LIN port) |
| Supported data length | 32 bits |
| Input Ports | 2 (1 for CAN, 1 for LIN) |
See Datasheet for full specifications
