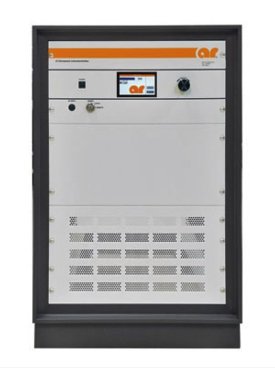

RENT AMPLIFIER RESEARCH 1000W1000G RF Amplifier (Call for Availability)
The Amplifier Research 1000W1000G is a solid-state, selfcontained, air-cooled, broadband amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. When used with a sweep generator, it will provide a minimum of 1000 watts of RF power. Included is a front panel gain control which permits the operator to conveniently set the desired output level. The 1000W1000G is protected from RF input overdrive by an RF input leveling circuit which controls the RF input level to the RF amplifier first stage when the RF input level is increased above 0dBm.
The Amplifier Research 1000W1000G is equipped with a Digital Control Panel (DCP) which provides both local and remote control of the amplifier. The DCP uses a color LCD touch screen display to indicate the operate status and fault conditions if an over-temperature or power supply fault has occurred. The unit can be returned to operate when the condition has been cleared. All amplifier control functions and status indications are available remotely through the included Remotes Package. The Remotes Package includes GPIB/IEEE-488 format, RS-232 hardwire and fiber optic, USB, and Ethernet.
Specifications for the Amplifier Research 1000W1000G RF Amplifier Include:
Frequency | 80MHz - 1000MHz |
Rated Output Power | 1000W |
Gain | 60 dB min |
Noise Figure | 6 dB typical |
See Datasheet for full specifications
