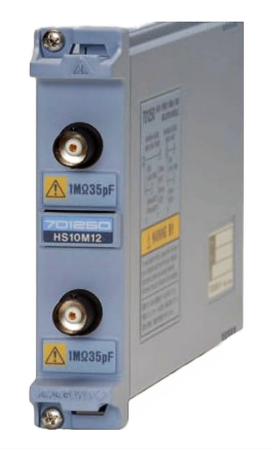

The Yokogawa 701250 Input Module, offers high speed and 12-bit isolation. Specifications of the Yokogawa 701250 module include:
Input channels 2
Input couplings AC, DC, GND
Maximum sampling rate 10 MS/s
A/D conversion resolution 12 bits (150 LSB/div)
Input type Isolated unbalanced
Frequency range(–3 dB)1 DC, up to 3 MHz
Input range
(10:1) 50 mV/div to 200 V/div (in steps of 1, 2, or 5)
(1:1) 5 mV/div to 20 V/div (in steps of 1, 2, or 5)
Effective measurement range 20 div (display range: 10 div)
DC offset ±5 div
Maximum input voltage (1 kHz or less)
In combination with 700929(10:1)
600 V (DC + ACpeak)
Direct input (1:1)
250 V (DC + ACpeak)
Maximum allowable in-phase voltage
In combination with 700929 (10:1)
400 Vrms (CAT I), 300 Vrms (CAT II)
In combination with 7019in steps of 1, 2, or 5+701954 (1:1)
400 Vrms (CAT I), 300 Vrms (CAT II)
Main unit only (1:1)
42 V (DC + ACpeak) (CAT I and CAT II, 30 Vrms)
DC accuracy ±(0.5% of 10 div)
Input impedance 1 M? ± 1%, approx. 35 pF
Connector type Isolation type BNC connector
Input filter OFF, 500 Hz, 5 kHz, 50 kHz, 500 kHz
Temperature coefficient
Zero point ±(0.05% of 10 div)/°C (typical value)
Gain ±(0.02% of 10 div)/°C (typical value)
